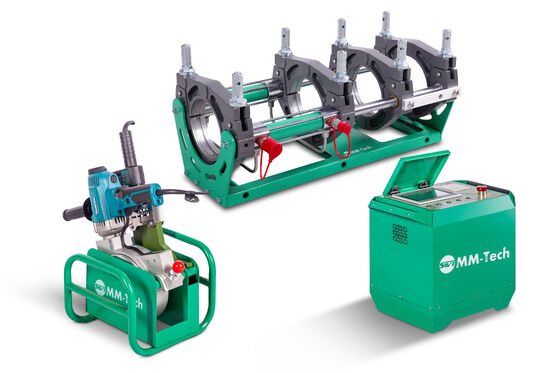

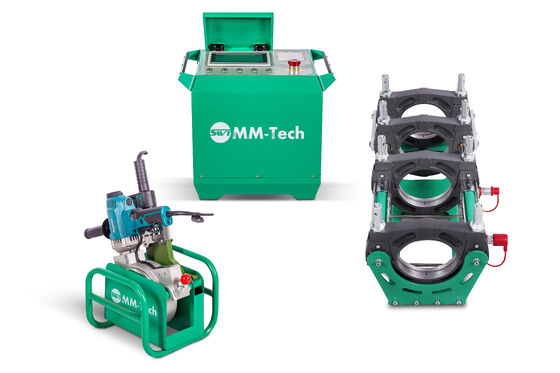

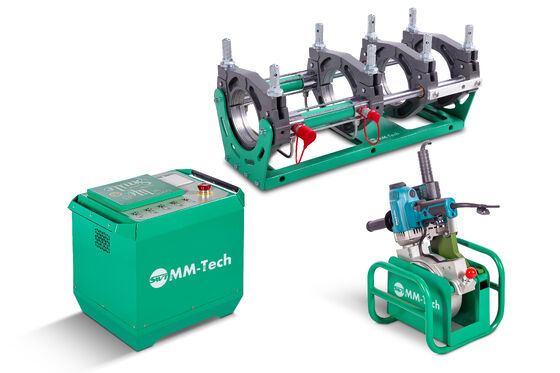

63mm-200mm Automatic CNC HDPE Butt Welding Machine

63mm-200mm Automatic CNC HDPE Butt Welding Machine

تصویر بزرگ :  63mm-200mm Automatic CNC HDPE Butt Welding Machine

جزئیات محصول:
محل منبع: هبی، چین
نام تجاری: MM-TECH
گواهی: CE
شماره مدل: SWT-V200/63A
پرداخت:
مقدار حداقل تعداد سفارش: 1
قیمت: USD7,200/set
جزئیات بسته بندی: 3 مورد تخته سه لا
زمان تحویل: در عرض 7 روز
شرایط پرداخت: T/T، وسترن یونیون، پی پال
قابلیت ارائه: 10/ست در ماه
توضیحات محصول جزئیات
ولتاژ: 230 ولت فرکانس: 50/60 هرتز
تایپ کنید: تمام اتوماتیک قدرت امتیازی: 3.0 کیلووات
محدوده جوشکاری: 63 - 200 میلی متر استفاده: جوش لب به لب
تضمین کیفیت: 24 ماه نام تجاری: MM-Tech
مدل: SWT-V200/63A مواد قابل جوش: HDPE PP PVDF و سایر مواد ترموپلاستیک
رنگ: سبز برنامه: سیستم های لوله
برجسته کردن:

63mm-200mm HDPE pipe welding machine,automatic CNC butt fusion welder,HDPE pipe butt welding machine with warranty

,

automatic CNC butt fusion welder

,

HDPE pipe butt welding machine with warranty

Automatic 63 - 200mm HDPE Butt Fusion Welding Machine
Butt Fusion Welding Machine Introduction
  • The MM-TECH V-CNC series automatic hydraulic butt welding machines are applied to joint PE, PP, PPR and PVDF pipes and moulded fittings. Selection of components with a long service life ensures a low maintenance and repair, friendly and reliable operation.
  • Due to the unique powertrain, it could not only create sufficient hydraulic power during welding procedure, but also it makes sure the precise control. And most importantly, it greatly reduce the weight of control box. And the servo-motor applied significantly reduce the failure possibility and maintenance cost.
Butt Fusion Welding Machine Datasheet
Model SWT-V200/63A
Welding Range O.D.(mm) 63 - 200mm
Reducer Inserts 63,75,90,110,125,140,160,180
Power Supply 230V 50/60Hz
Rated Power(kW) 3.0
Piston Area(cm²) 6.27
Overall N.W./G.W.(kg) 110kg/140kg
Butt Fusion Welding Machine Application

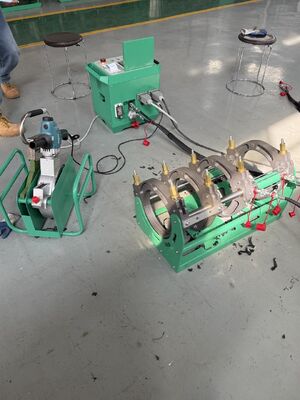

63mm-200mm Automatic CNC HDPE Butt Welding Machine  0

Exhibition

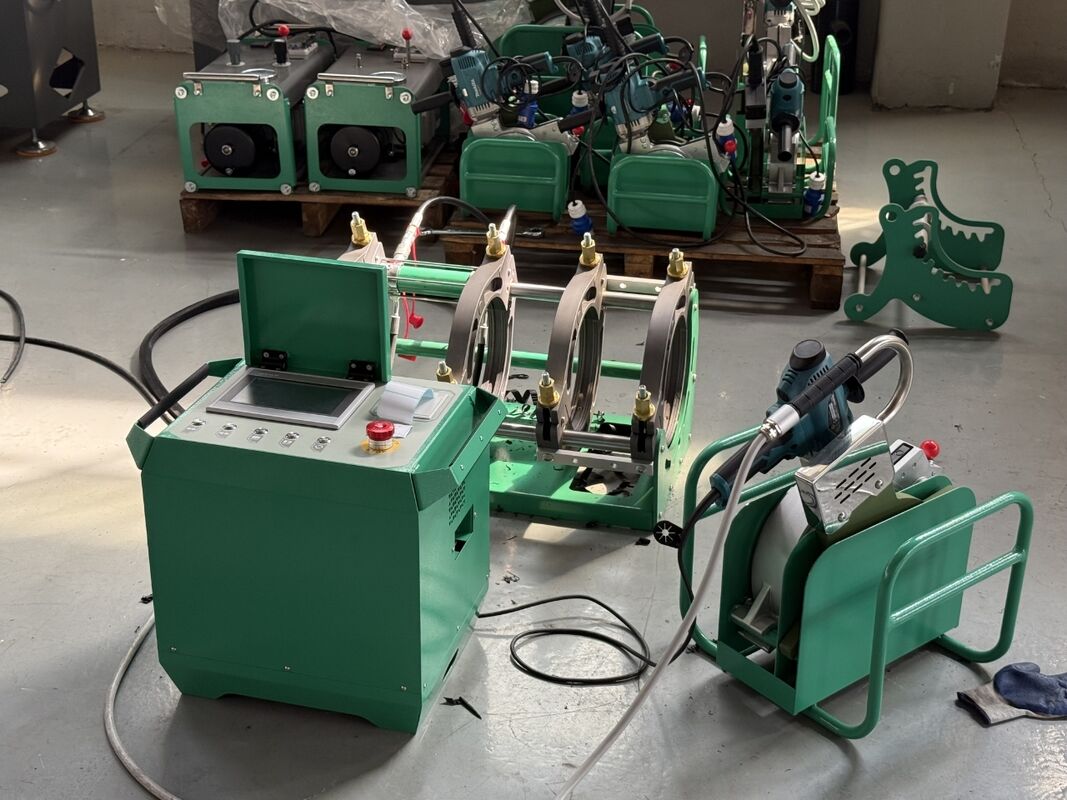

63mm-200mm Automatic CNC HDPE Butt Welding Machine  1

FAQ
Quality Guarantee 2 years
Delivery Time Within 7 days
